1. Introduction
In recent years, Cybersecurity has transitioned from rule-based detection to the development of Anomaly Detection Models powered by Machine Learning. As threat actors increasingly use AI to enhance their adaptability, it is vital for security infrastructures to evolve into adaptable defense mechanisms, leading to the rise of model-based anomaly detection
The efficacy of any model is linked to the quality of its training data; consequently, any manipulation of this data inevitably compromises the model's integrity. This vulnerability is further reinforced by the current shift toward adaptive models that learn from real-time user data. This trend introduces a significant security flaw by granting users influence over the very data the model utilizes for training. This specific loophole facilitates the process of desensitization through data poisoning, specifically an adversarial technique known as a Boiling Frog Attack.
The core concept of this exploit pipeline is manipulating the logs to rewire a security system's response to suspicious activity.
Let's go through each step that makes this exploit possible and further, prevention strategies to thus, adapt.
2. Architectural Discovery - Finding the Open Pipe

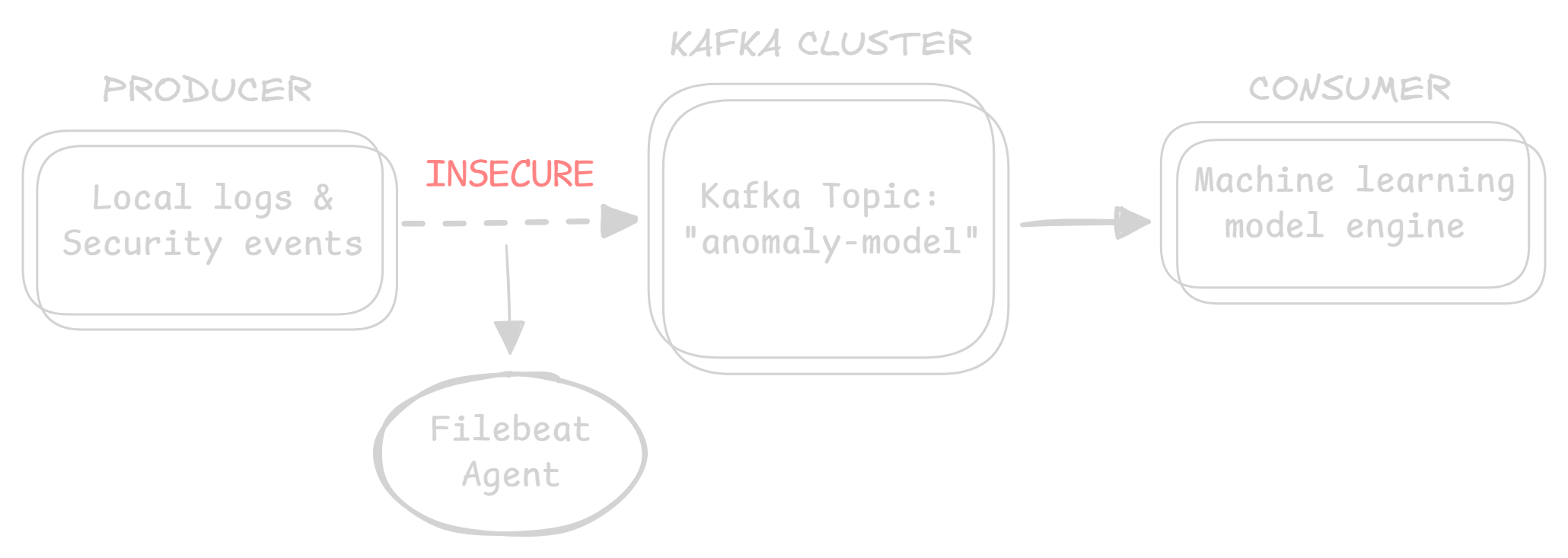

Let's assume an internal pentester, under the contract, has gained a low-level foothold on a corporate workstation.To feed an active anomaly model, enterprise networks rely on Apache Kafka as a data highway. The main function of Kafka is to transfer huge amounts of data between different systems without crashing. These data are initially sorted into Topics to keep the traffic organized.
Localized collection daemons (e.g. Winlogbeat, Filebeat, or Splunk forwarders) watch host events and ship raw records to the Kafka cluster.
The structural flaw manifests when developers treat the internal network as an implicit trust zone, failing to enforce authentication (or ACLs) on the Kafka brokers. By looking through localized agent configuration files on the compromised workstation, an attacker can map the log-shipping topology. This is done by inspecting the primary configuration file, generally located at C:\Program Files\Filebeat\filebeat.yml which reveals exactly how host telemetry is formatted and where it is sent.
2.1 Pipeline Configurations
Reviewing standard setup parameters displays the stark divergence between a locked-down operational deployment and an environments configuration file layout exposing an unauthenticated ingestion zone.
# NON-VULNERABLE CONFIGURATION
filebeat.inputs:
- type: filestream
id: win-security-logs
paths:
- C:\Windows\System32\Winevt\Logs\Security.evtx
output.kafka:
hosts: ["kafka-secure.bank.internal:9093"]
topic: "anomaly-model"
# THE AUTHENTICATION LOCK
username: "workstation_log_shipper"
password: "${local.KAFKA_MODEL_PIPELINE_PASS}"
sasl.mechanism: "SCRAM-SHA-512"
ssl.enabled: true
ssl.verification_mode: "full"
ssl.certificate_authorities:["C:\Program Files\Filebeat\certs\
bank-root-ca.pem"]# VULNERABLE CONFIGURATION
filebeat.inputs:
- type: filestream
id: win-security-logs
paths:
- C:\Windows\System32\Winevt\Logs\Security.evtx
- C:\Apps\AuthenticationProvider\logs\login_attempts.log
output.kafka:
hosts: ["192.168.10.25:9092"]
topic: "anomaly-model"
# Missing authentication, authorization, and TLS encryption
This vulnerable design of the log-to-apache kafka pipeline is the gateway for us to inject synthetic logs that can manipulate the anomaly model.
3. Exploiting the Isolation Forest Model
Isolation Forests are frequently utilized as the core algorithm for anomaly detection. They are an unsupervised group of random decision trees that split data points based on feature dimensions.
Instead of learning what "normal" behavior looks like, it works on a simple principle: anomalies are rare and distinct, so they are easy to isolate.

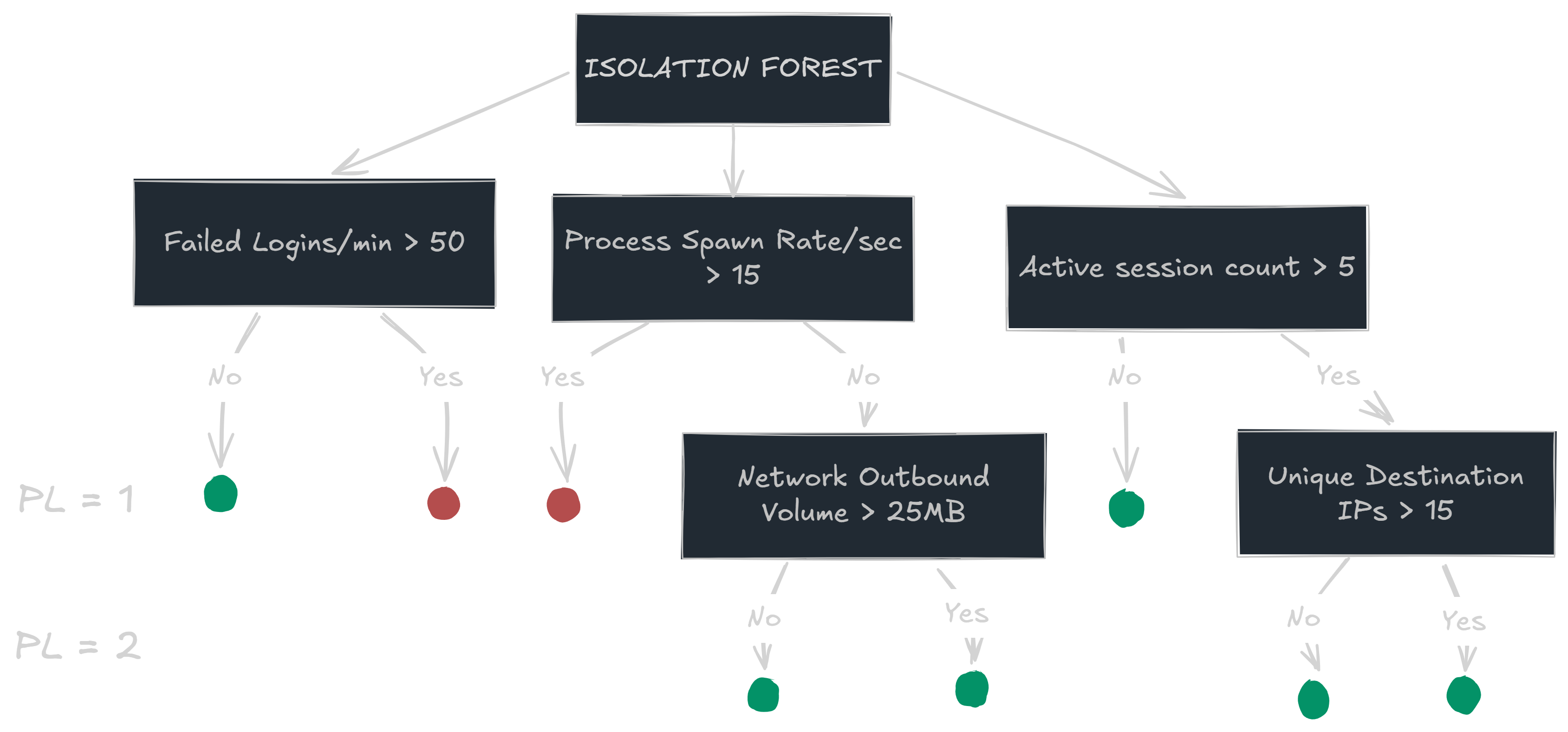

For an easier explanation on how they are exploited, we will use a far simpler isolation forest comprising only three decision trees.
The red circles represent anomaly cases and will thus be flagged if the model detects them within the logs or its input data. Because anomalies are statistically rare and structurally distinct, they isolate rapidly during random partitioning. This can be observed in the minimal Path Length [PL] $(h(x))$ , terminating immediately near the root node while normal data points require deep, highly branched paths to be isolated.
The anomaly score $s(x,n)$ for an operational sample $x$ within a dataset size of $n$ is derived using the following core formula:
$h(x)$: Path length (number of splits) of the data point $x$
$E(h(x))$: Average path length across all trees in the forest
$c(n)$: Average path length of unsuccessful searches in a binary search tree of size $n$
Interpretation: Scores closer to 1 indicate anomalies, while scores below 0.5 indicate normal points.
Because the internal Kafka pipeline is unauthenticated, they can use a lightweight Python script to stream thousands of low-volume, synthetic events directly into the anomaly-model topic.
# Exploit Script
from kafka import KafkaProducer
import json
import random
producer = KafkaProducer(
bootstrap_servers=['192.168.10.25:9092'],
value_serializer=lambda v: json.dumps(v).encode('utf-8')
)
# Injecting continuous, synthetic "gray noise" to distort feature boundaries
for i in range(10000):
fake_log = {
"failed_logins": random.randint(1, 3),
"active_sessions": random.randint(1, 2),
"network_volume_mb": random.uniform(0.5, 2.0)
}
producer.send('anomaly-model', value=fake_log)
By streaming thousands of low-volume, synthetic events directly into the open Kafka topic, it results in increasing of the path length $[h(x)]$. In simple words, this script feeds the model intentional traffic to turn an eventual high-severity attack into a needle in a haystack. This could be understood better when we shift from a tree based approach of isolation forests into a geometric translation of the feature space.

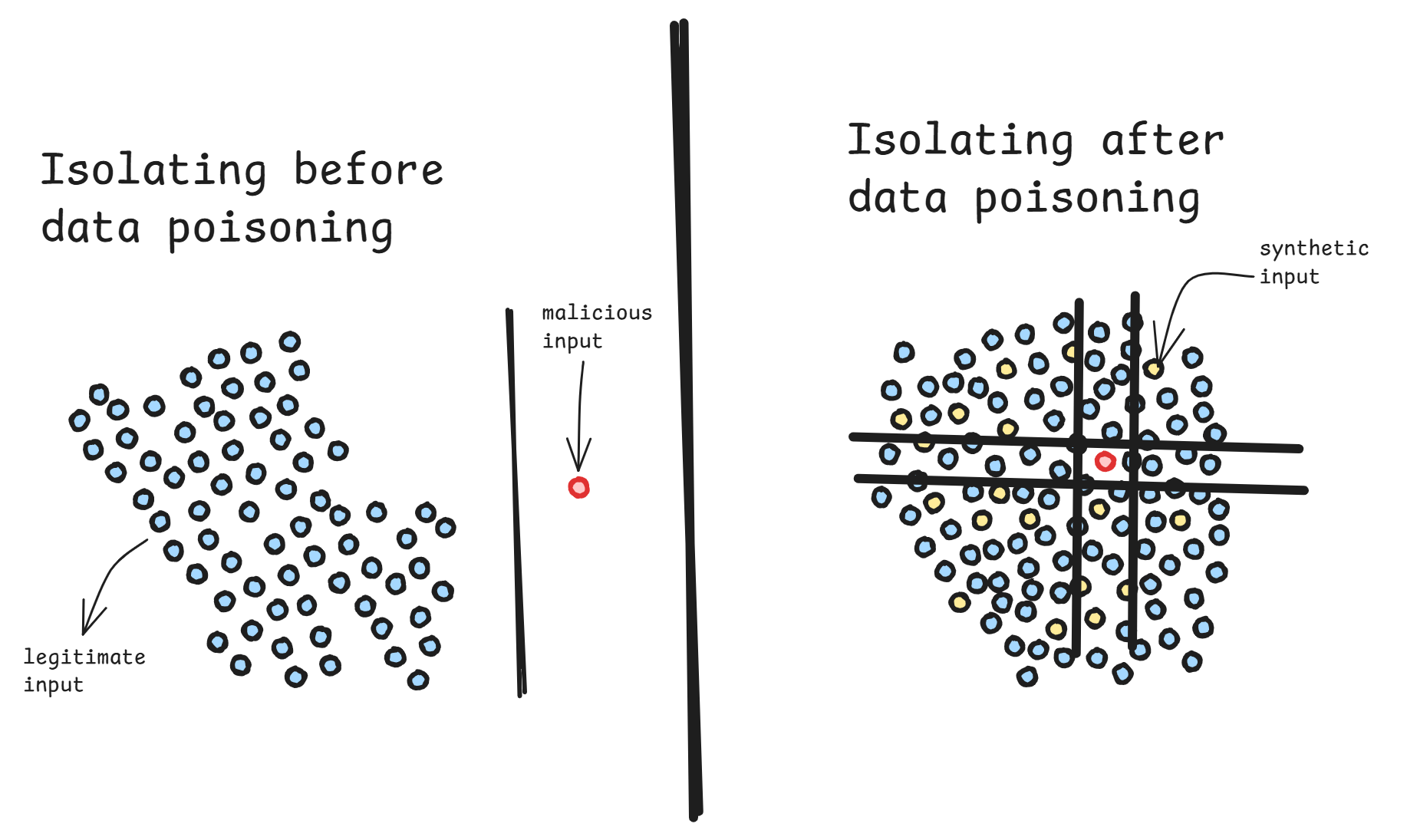

Geometrically, you can think of it as flooding the data space with artificial points. When the algorithm undergoes its next automated retraining loop:
- The Injection: The script floods the space with fake, low-level clutter.
- The Retraining: The model absorbs the noise and stretches its definition of "normal".
- The Blind Spot: True anomalies now require deeper paths to isolate, driving the risk score safely below 0.5, giving it a fake positive result.
Consequently, when the attacker executes their actual high-severity objective (such as conducting lateral privilege escalation), the modified decision trees require a significantly higher number of splits to isolate the malicious data point. The average path length $E(h(x))$ remains long, driving the mathematical anomaly score safely below 0.5.
For the mathematics side of the model exploit, click below:- As $E(h(x)) \to 0$ (very short path length, easily isolated), the exponent approaches $0$, meaning $s(x,n) \to 2^0 = 1$ (Highly Anomalous)
- As $E(h(x)) \to \infty$ or grows deep (long path length, deeply nested), the exponent becomes a large negative number, meaning $s(x,n) \to 2^{-\infty} = 0$ (Highly Normal).
This inflates the path length when the malicious payload is injected: $$ E(h(x_{malicious})) \gg c(n) $$ $$\frac{E(h(x_{malicious}))}{c(n)} > 1 \implies -\frac{E(h(x_{malicious}))}{c(n)} < -1$$ Plugging this in the original score formula: $$\boxed {s(x_{malicious},n) = 2^{\text{(a value } < -1\text{)}} < 0.5} $$ Now, the score below 0.5 makes the malicious payload pass as a normal data point.
4. Defence Against Data Poisoning
- Transport Authentication: Brokers must drop unauthenticated traffic. Implement Mutual TLS (mTLS) alongside SASL/SCRAM-SHA-512 to ensure that only cryptographically verified endpoint log forwarders can write data to security topics.
- Secrets Controls: Avoid hardcoding pipeline configurations or storing secrets in plaintext. Use secure system environment variables or centralized secrets management instances (e.g., HashiCorp Vault) to inject transport credentials dynamically into shipping agents at runtime.
- Algorithmic Hardening: Shift away from completely fluid, automated dynamic retraining loops. Implement robust statistical estimators, such as Median Absolute Deviation (MAD), which natively minimize the mathematical weight of extreme outlier noise during compilation.
- Cross Validation: Finally, every retrained model must be rigorously cross-validated against an unmodifiable, offline "gold standard" baseline dataset to detect threshold shifts before being deployed to production.
5. Conclusion
Machine learning models have advanced incident response velocity, but they are not magical entities; they are highly deterministic algorithms built on top of traditional data engineering infrastructure. If the pipeline feeding the model treats internal network traffic as inherently trustworthy, it hands an internal threat actor full administrative control over the model's training boundaries.
Helpful Resources:
- Elastic Documentation: Configure the Kafka Output for Filebeat.
- ML Conference paper: Real-Time Anomaly Detection with Kafka and Isolation Forests.
- Medium Blog: Understanding Isolation Forest for Anomaly Detection
- MITRE ATLAS Framework: Technique AML.T0020 - Poison Training Data.
- Visualization Tool: Excalidraw Virtual Whiteboard.
Thank you for reading.
